Design freedom made easy: Advantix Cleviva

The inlay for the shower channel profile comes in two design variants, with one or two rectangular or circular inlets. The material composition of the Advantix Cleviva is also a key feature. Its 4 mm thick stainless steel is torsion-free and bend-resistant, so cannot be deformed.

Thanks to a special surface treatment of the shower profile, the water is guided optimally towards the single-point drain. This results in a smooth flow. Alongside the standard drain for construction heights of 95 mm and more, a flat drain for renovations is also available with heights starting at 70 mm.

As of now: the Advantix Cleviva is available in four new colours

We offer the Advantix Cleviva in four contemporary colours: anthracite, gold, copper-gold and champagne. They enable to design the bathroom in line with the latest colour trends. Profiles and inlays in diferrent colours can even be combined within the same shower channel.

With the four colours, Viega is putting a distinctive face to these unique installation selling points. The high-quality PVD-coated stainless steel profiles are a continuation of the bathroom design trends that have already been making their mark in the form of fittings, WC flush plates and shower heads, as well as tubs and washbasins.

Independent design experts say: thumbs up!

Indpendent design experts praise the design as well: the Advantix Cleviva won prestigious prizes: the IF Design Award 2020 selected by 78 experts from all over the world, the German Design Award 2020 awarded by the German Design Council or the Red Dot Award 2020. The awards honour innovative products that set accents in the international design landscape.

The high standard of hygiene and the easy handling of the Advantix Cleviva are further advantages for users. The shower channel is designed The shower channel is designed in such a way that the open drain profile no longer creates any space for dirt deposits and rust removal is no longer necessary. The drain profile can easily be cleaned with a cleaning cloth. The insert can be removed with one hand, which makes the odour trap easy to clean if necessary, as can the downstream sewer line.

In addition, you can adapt the Advantix Cleviva to any installation situation. This allows you to position the Advantix Cleviva anywhere on the tile surface: centrally, decentrally or directly on the wall. In addition, the shower profile can be extended indefinitely. It has a flat surface at both ends. This allows several complete models to be arranged side.

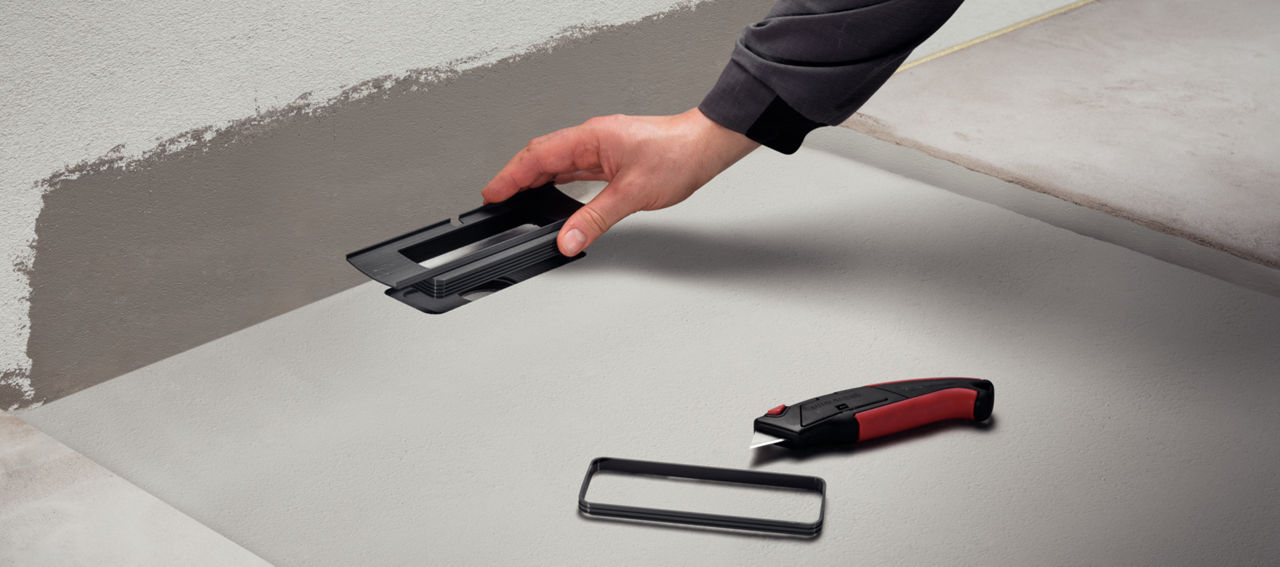

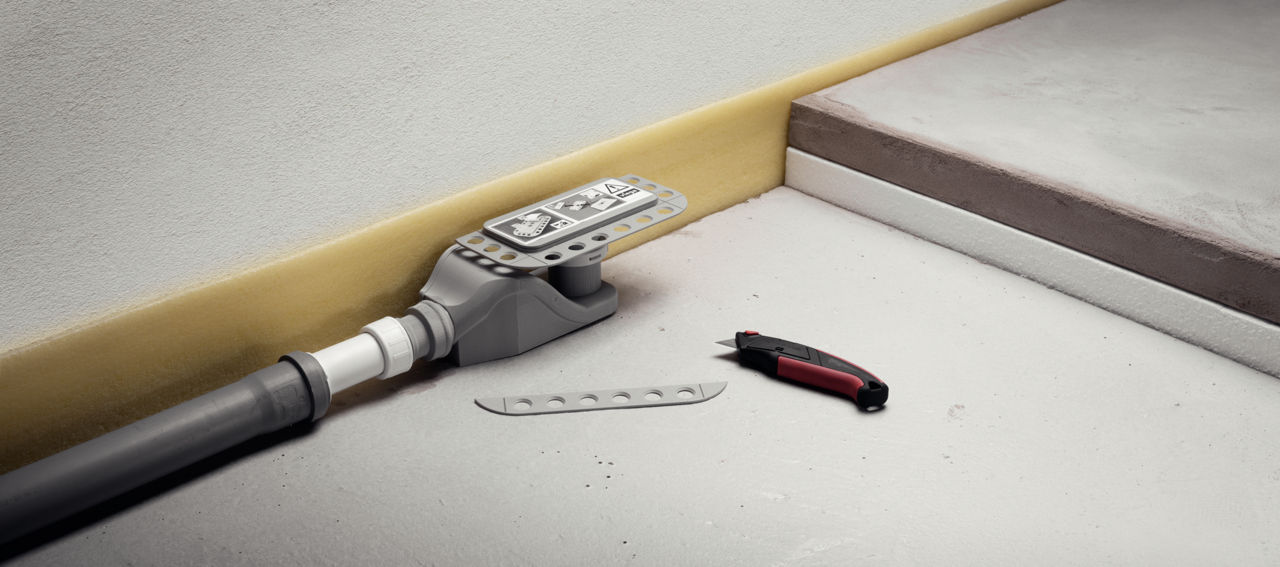

The Advantix Cleviva shower channel can be positioned anywhere in the tiled area: centred, off-centre, or directly on the wall. Thanks to the easy detachment of the reinforcement, the drain can be mounted directly on the plastered wall. The drainpipe layout can be freely adapted to the requirements of the installation situation.

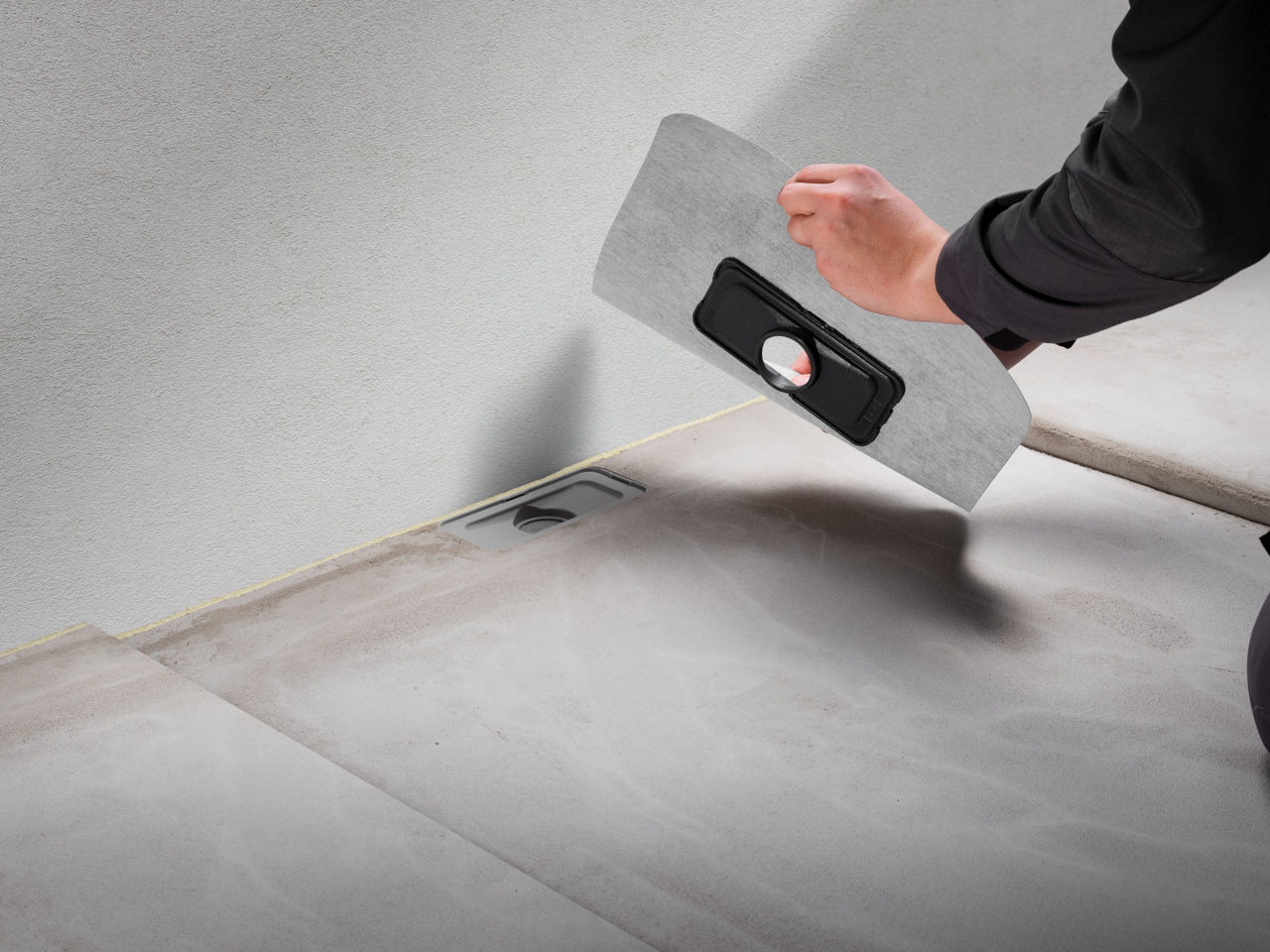

The sealing collar is factory-fitted on a mount which simply clicks into the drain flange, securing the seal between the flange and the sealing collar. It's a benefit that tilers really appreciate.

The height adjustment piece equalises differences in height of as much as 30 mm. That enables even minimal tile thicknesses or robust natural stone coverings to be worked. The tightest fits can be accommodated by a 3.5 mm adjustment on the long side and 5 mm on the short side.

The profiles are available in 800 mm, 1000 mm and 1200 mm lengths, each of which can be shortened to 300 mm. However, an unlimited number of shower channels can also optionally be installed in series. That is a design option which can be used at any time for larger rooms especially.

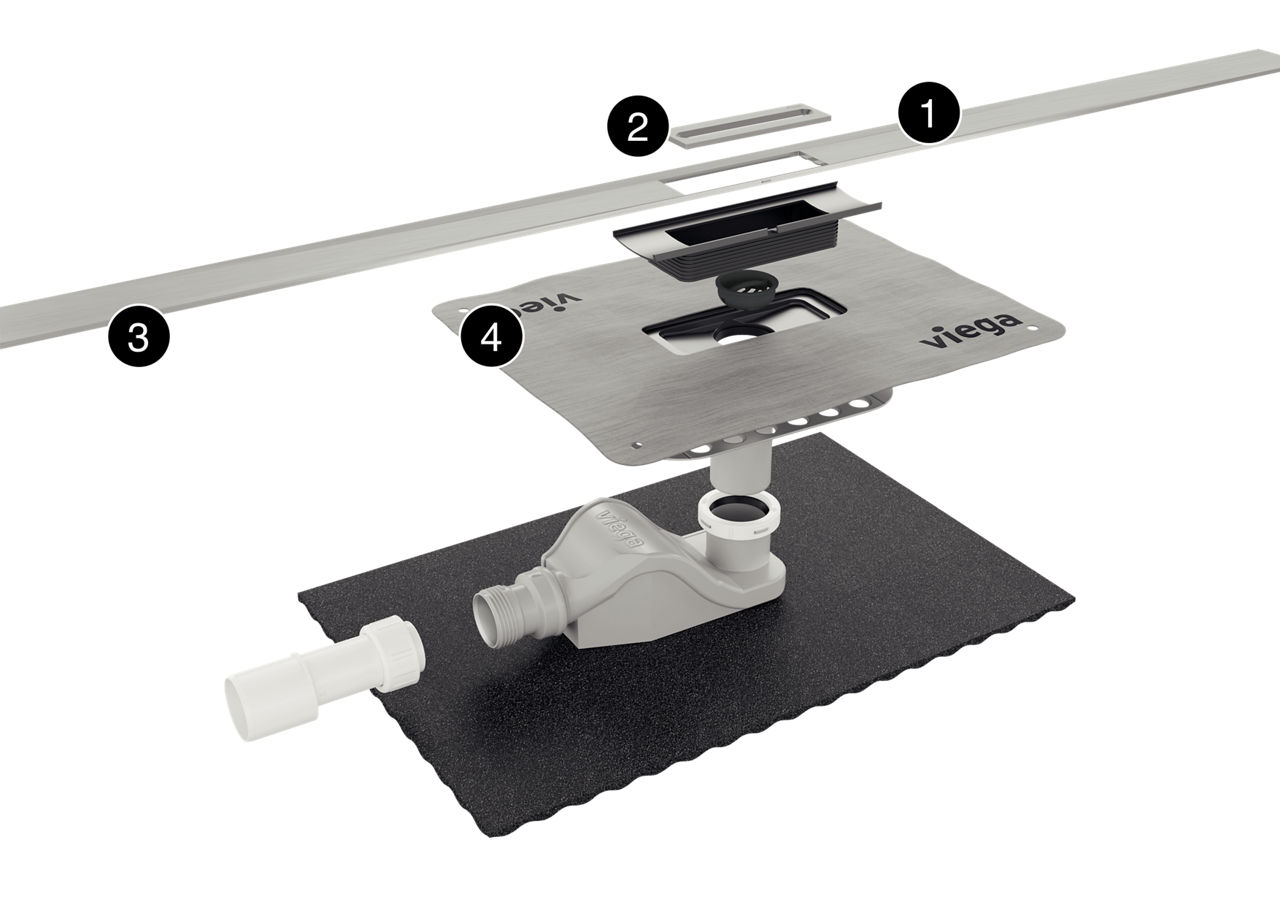

1. Optimum water flow

The factory-installed, internal slope in the drain profile of 1 to 2 percent ensures optimum water flow in the direction of the drain.

2. Flexible design

The insert for the shower channel profile is available in two design variants: with one or two inlet openings, in square or round shape.

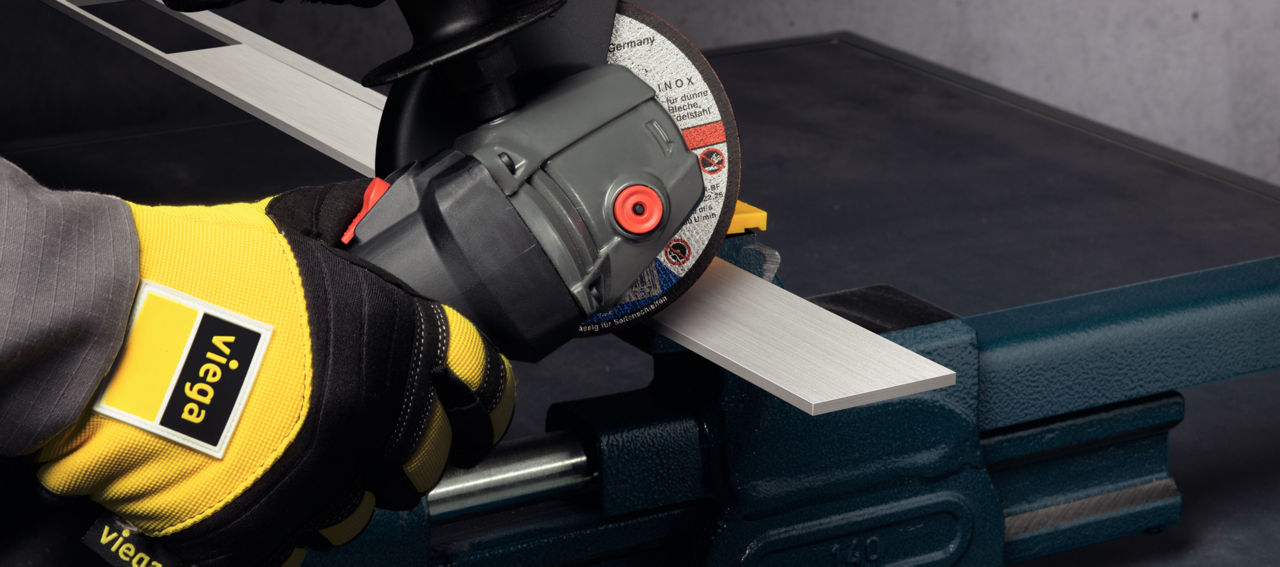

3. Shower channel length adjustable

The shower channel profiles can be shortened from 1,200 to 300 mm. Likewise, it is possible to line them up in an unlimited number of rows. This allows Advantix Cleviva to be adapted to different installation situations.

4. High safety

The click-in and factory-fastened sealing sleeve offers maximum sealing safety for the tiler.
